Request informationNew Wireless Intercom Beltpack

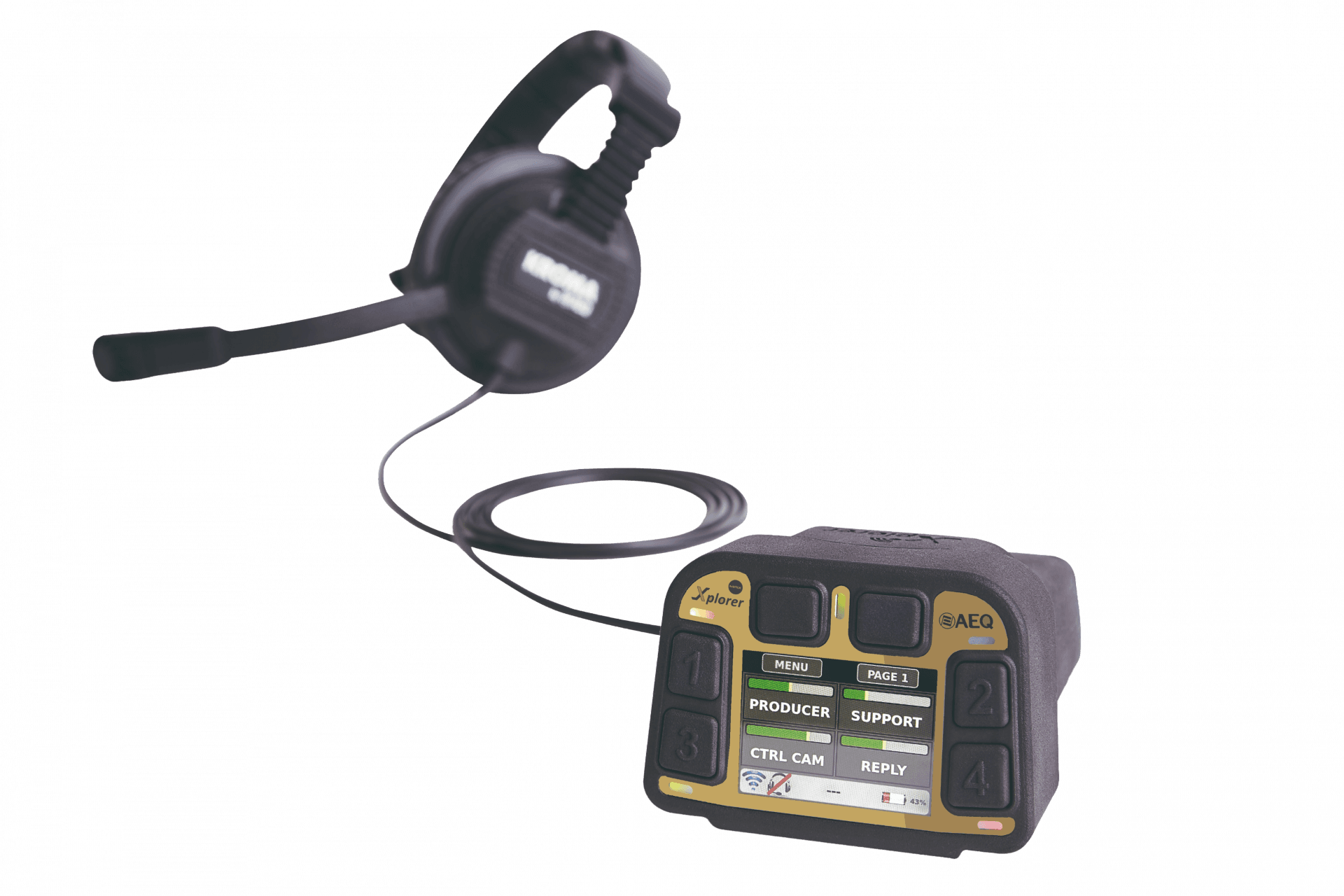

Xplorer MAX is a wireless intercom beltpack based on innovative, high-performance digital radio technology. It includes all the features and functions of an intercom user panel, with four shortcut keys organized in up to 4 pages, two additional programmable keys, and a multifunction display. It can work with any AEQ intercom matrix, such as Conexia, Crossnet, or TH5000. It also integrates with Xpeak, AEQ's matrix-less intercom system, or as a terminal for the Easynet Party-Line system.
Best of Show Award NAB 2025 – Presented by TVB Europe
PDFDownload catalogueTechnical specifications of the radio system
- ✓Frequency range: 4900-5875 MHz
- ✓OFDM multiplexing (Orthogonal Frequency-Division Multiplexing) with 256 carriers and adaptive BPSK, QPSK, and QAM
- ✓QoS with voice prioritization
- ✓Dynamic frequency switching
- ✓Advanced interference control
- ✓Carrier aggregation technology (dual carriers)
- ✓Transmission power: 200 mW per channel, 400 mW total
- ✓Range: Up to 600 meters in open field
- ✓Base station capacity: Up to 50 users
- ✓Base station consumption: from 22 to 30 W, depending on traffic
- ✓DC power supply with included AC adapter
- ✓Dimensions 210x270x70 mm
- ✓Operating environment: Indoor and outdoor (IP67, -30º to +55ºC)
Operating Modes

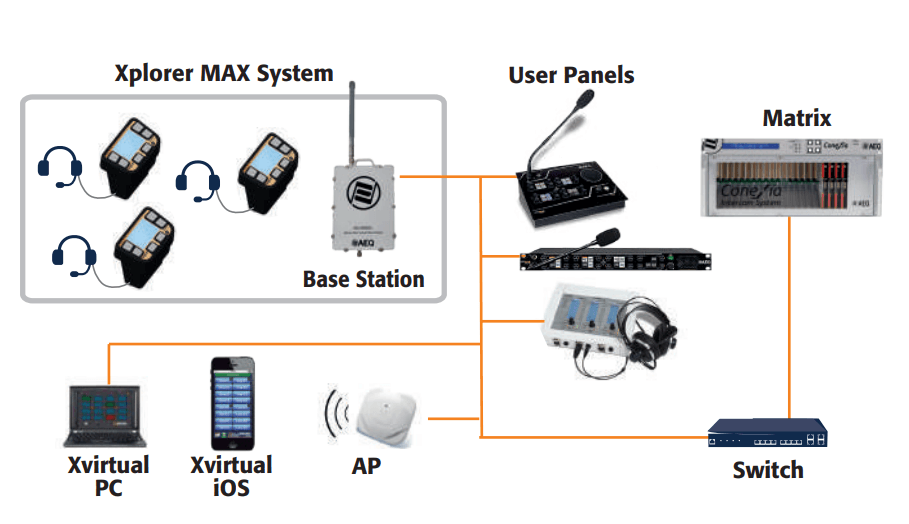

Compatible with any AEQ intercom matrix: Conexia, Crossnet and TH5000. Available key commands: Talk, Listen, Talk&Listen, Remote One Way, Remote Both Ways, Remote Volume and Dial Call. Also integrates 8000 and 9000 series wired panels, Olympia 3 commentator units and iOS/Windows applications via the Xvirtual app.

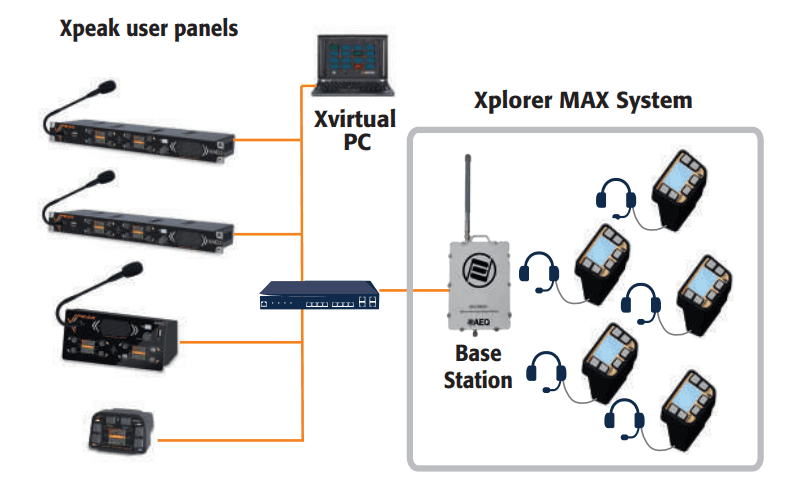

Xplorer MAX can also be used in matrix-less Xpeak systems, where each key can activate the same commands as in matrix mode. These systems are built with Xpeak_R and Xpeak_D wired panels, Xpeak_BP wired beltpacks, Xpeak Virtual panel for PC, and Xpeak_IF audio interfaces.

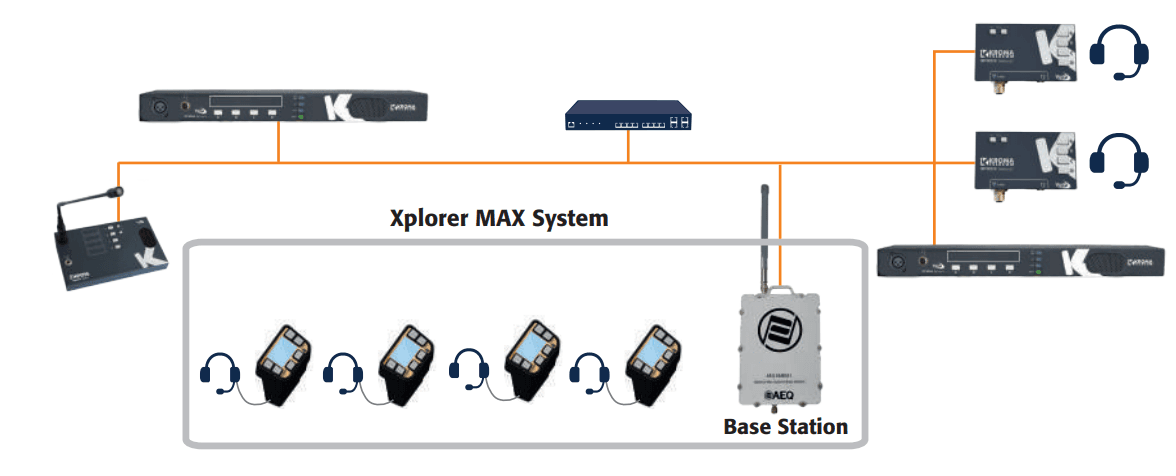

Xplorer MAX also operates in Party-Line mode without the need for a matrix, functioning as a terminal in the Easynet system with 4 independent channels and up to 28 devices per channel.
Xplorer MAX Technical Features

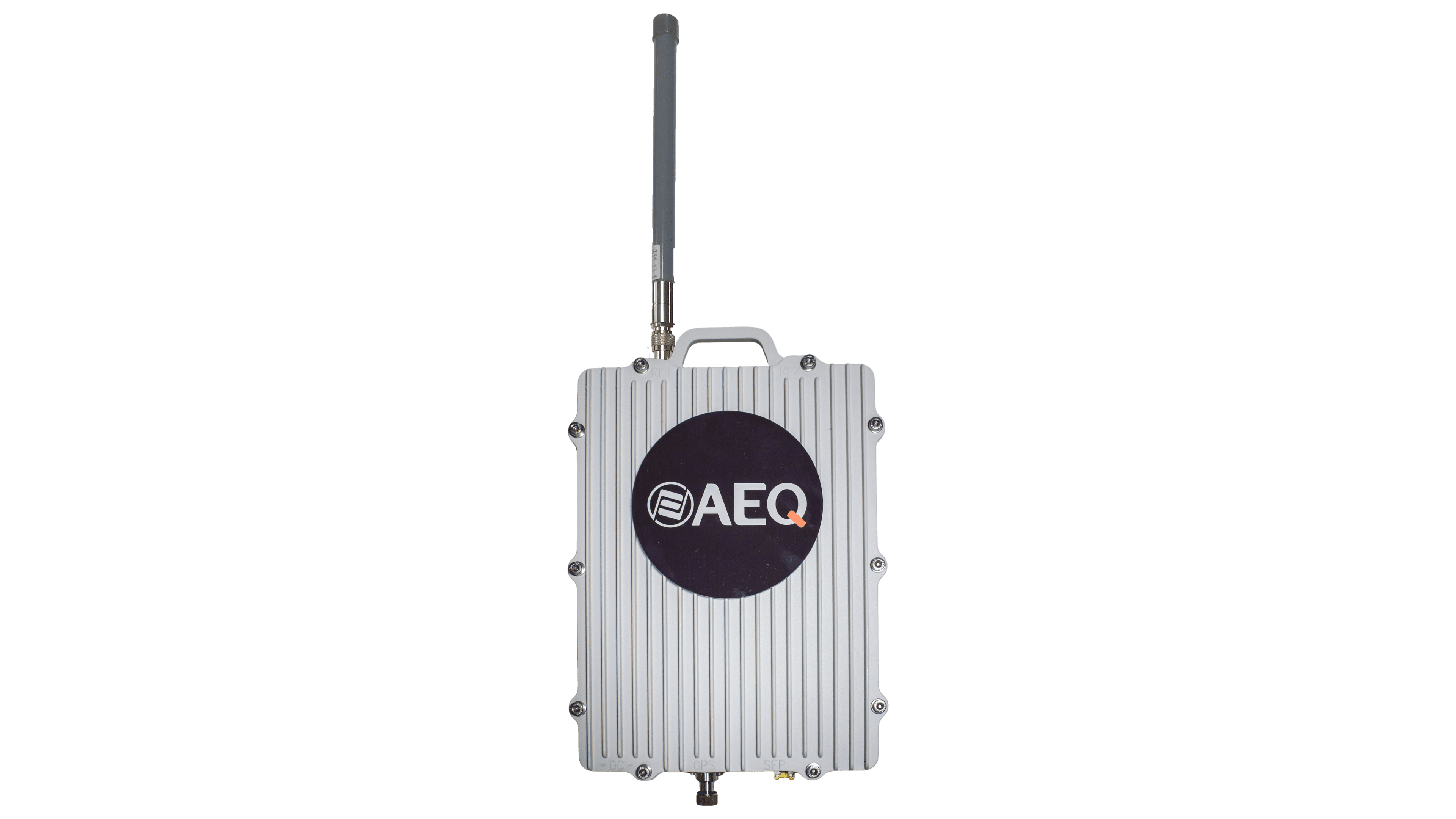

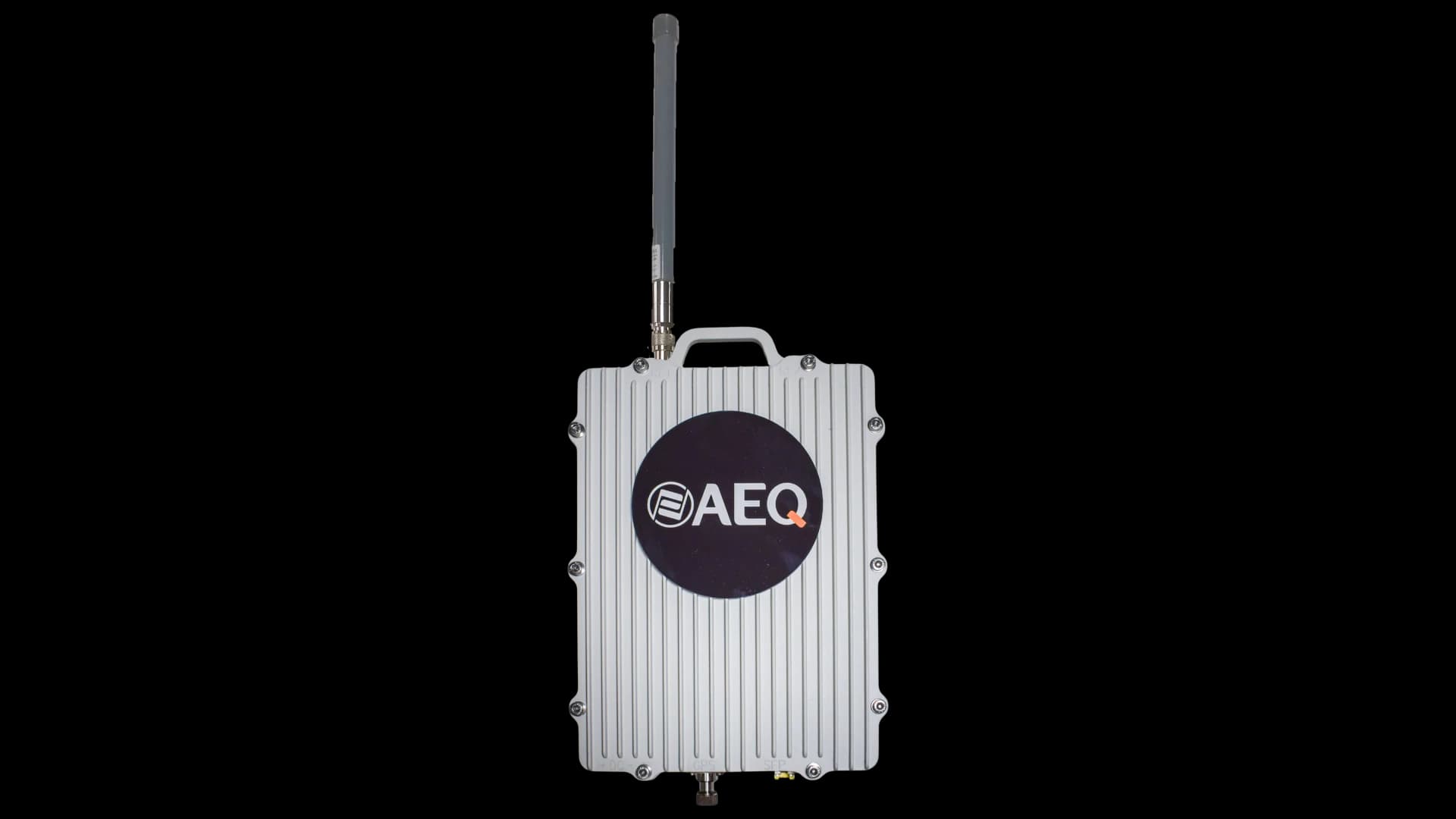

Radio System (Base Station)
- 4900–5875 MHz
- OFDM multiplexing (256 carriers and BPSK, QPSK, adaptive QAM)
- Voice prioritization
- Seamless switching
- Advanced control
- Dual carriers technology
- 200 mW per channel, 400 mW in total
- Up to 600 meters in open field
- Up to 50 users
- 22 to 30 W depending on traffic
- DC with included AC adapter
- 210×270×70 mm
- Indoor & outdoor (IP67, −30° to +55°C)
Features
- Multi-carrier digital radio system in the 5 GHz band
- Can operate as a client of AEQ Crossnet, Conexia, and TH5000 intercom matrices
- Works with the Xpeak system and in Party-Line mode. 4 channels; each terminal can receive audio from up to 28 devices
- With matrix: up to 4 configuration pages with 16 virtual keys
- Matrix-free Xpeak mode: 4 programmable keys with 8 virtual keys
- Working mode (Matrix-free Xpeak or connected to a matrix)
- Audio codec selection
- Trigger level selection (noise gate)
- Connection status information
- Send test tone
- G711
- G722
- Kroma legacy VoIP K711
- Talk
- Listen
- Talk&Listen
- Remote One Way
- Remote Both Ways
- Remote Volume
- Dial Call
Dimensions and weight approximately
- 92 mm
- 130 mm
- 70 mm
- 365 g
Power and Charging
- High-capacity internal battery: up to 10 hours of operation
- For 5 devices
- Approximately 3 hours
