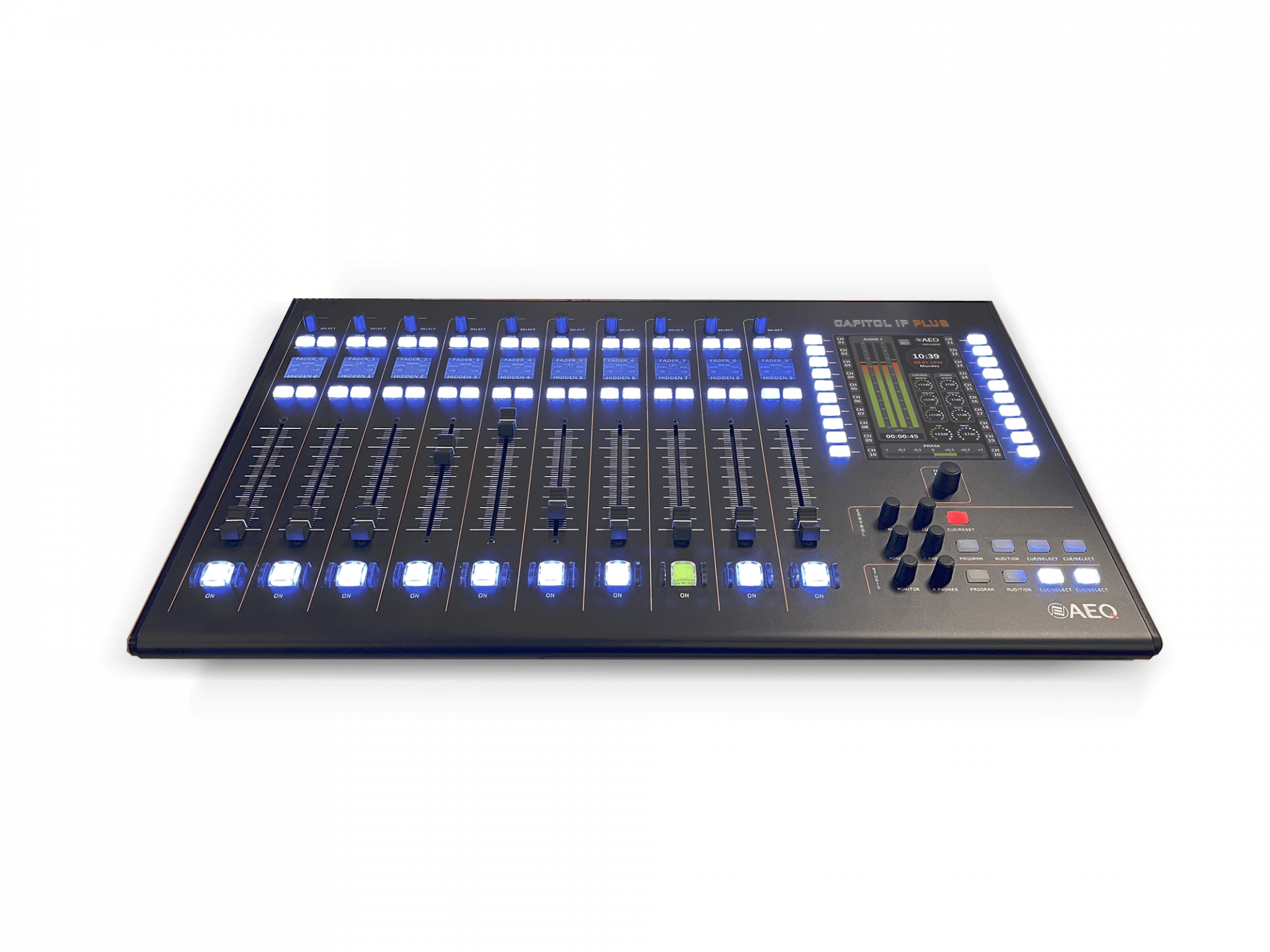

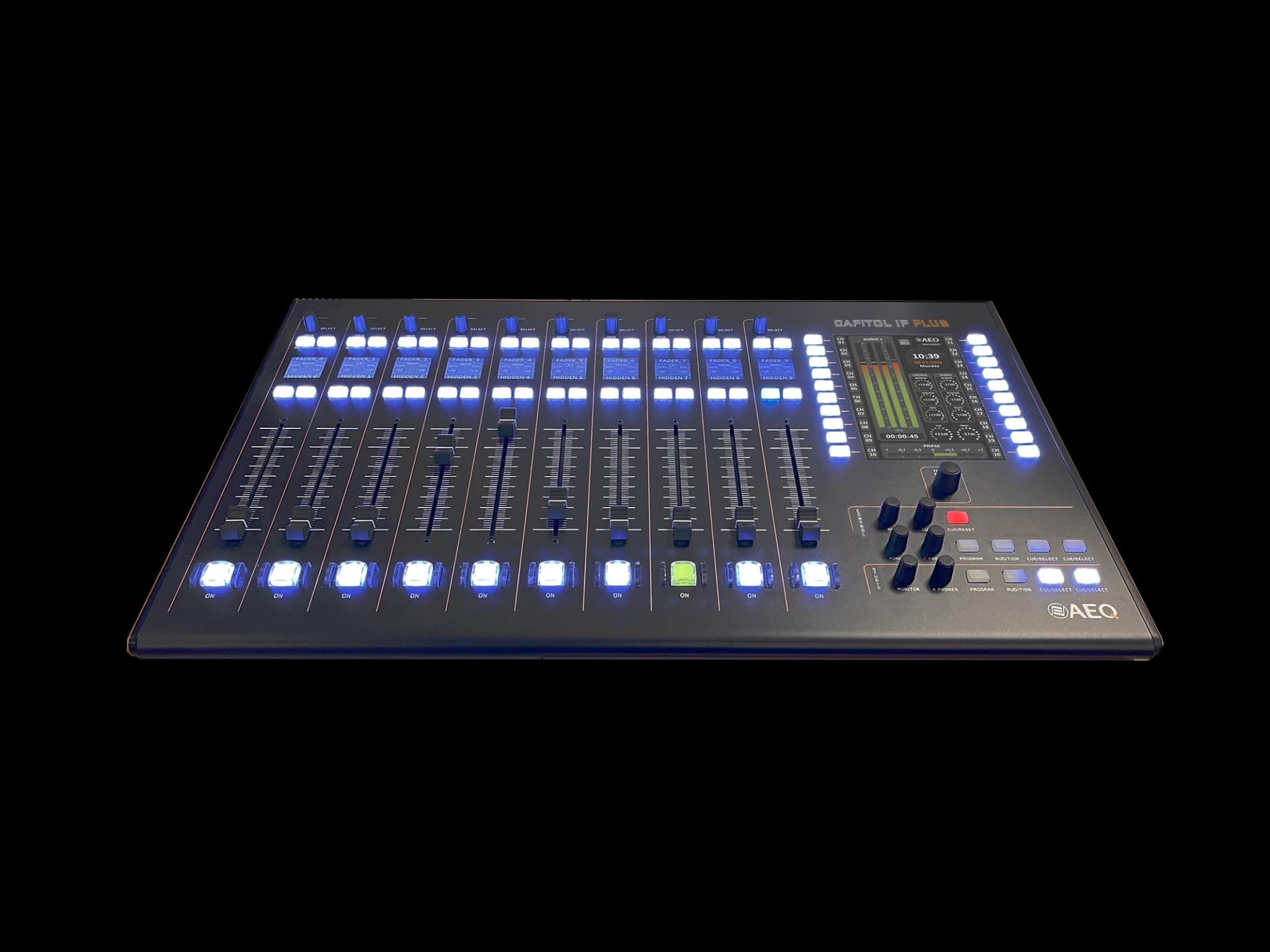

10 fader ergonomic surface with a touchscreen
Including local IP audio
Audio processing with 4-band parametric equalizer, filters, and dynamics
Virtual Capitol option
Contact us

Interested in this product?

Request information

New Ultra-Compact Digital Audio Console for Radio and Television

CAPITOL IP PLUS is a new digital audio broadcast mixing console, specifically designed for ON AIR control but adapts to a diversity of workflows and functionalities. It incorporates all the basic features required for such operations: automatic monitor muting, cough muting, fader start, control signalling, control signals for automating external equipment, external communications management, talkback or intercom functions, and many more.

CAPITOL IP PLUS

Digital audio mixer with IP connectivity for ON AIR broadcast applications.

Audio processing: 4-band parametric equalizer, filters, and dynamics.

Up to 32 sum-buses for program outputs, ancillaries, monitoring, and clean feeds.

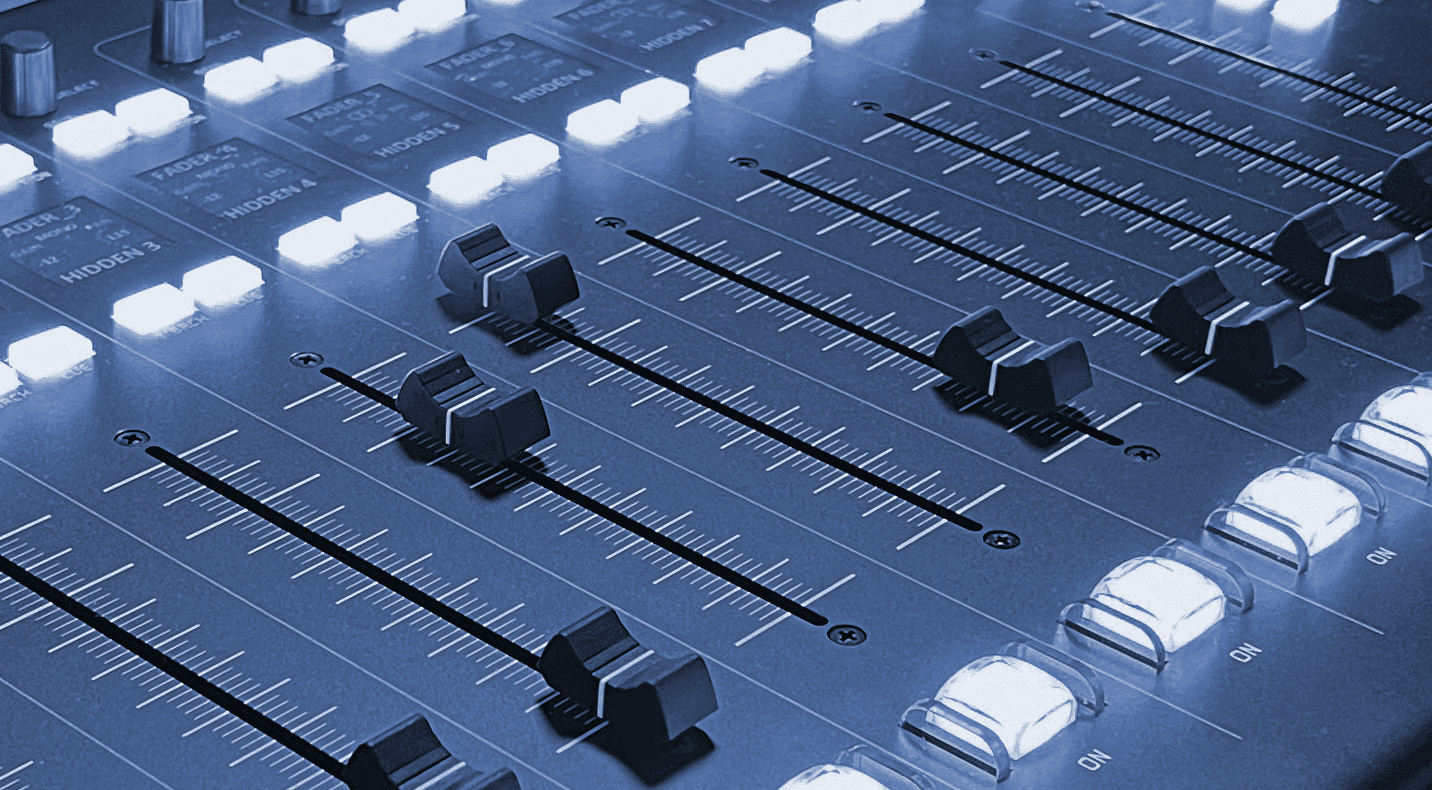

Ergonomic surface with a touchscreen.

Virtual Capitol option, enabling remote control from a parallel control surface on a PC.

Equipped with Bluetooth for phone connections or stereo audio playback.

Power and simplicity in perfect harmony

PDFBrochure

M_CORE PLUS Engine: Fixed configuration frame

Internal Modules for Power Redundancy and I/O in Various Formats:

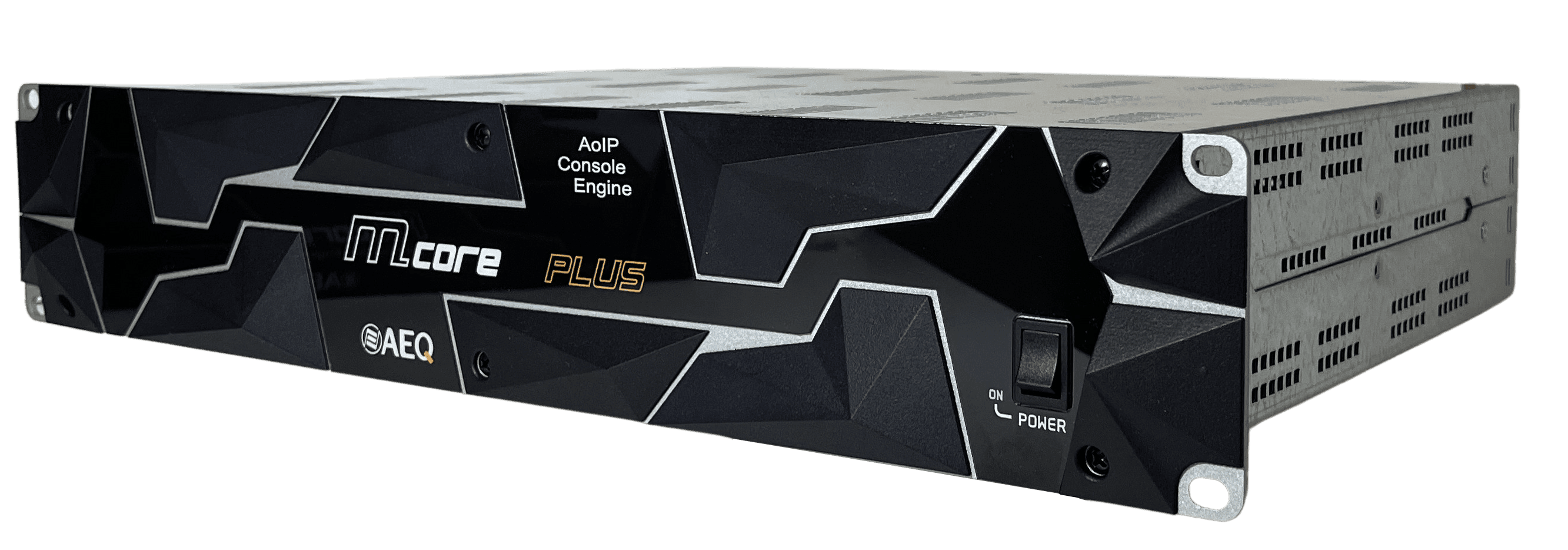

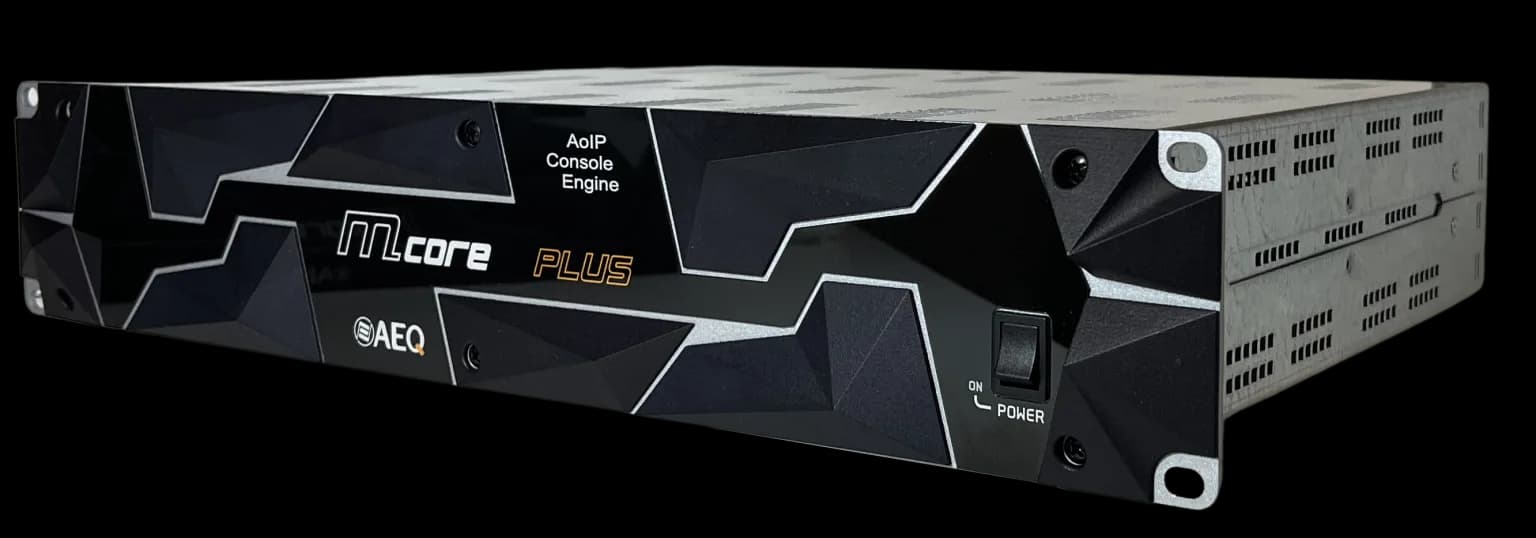

M_CORE PLUS front panel

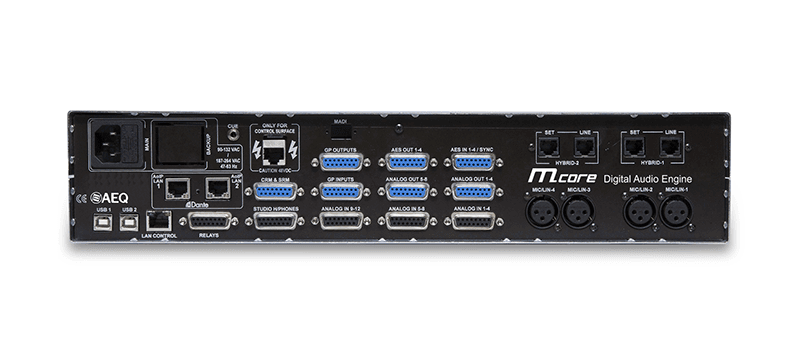

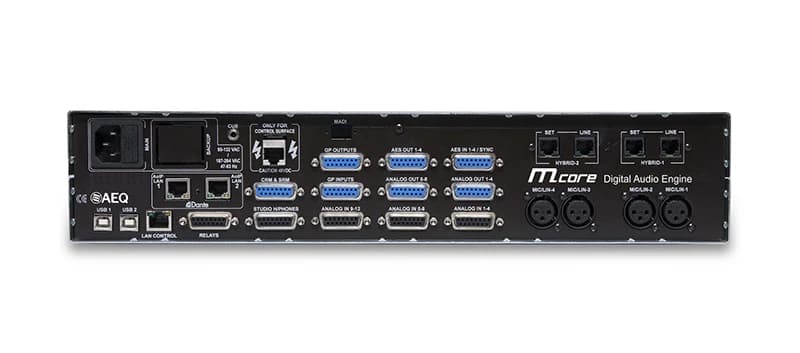

M_CORE PLUS connections

MCORE PLUS FA: Redundant power module

MCORE PLUS HYB: Dual digital telephone hybrid module

MCORE PLUS DANTE 16-32: 32-Channel IP module expansion

VIRTUAL CAPITOL IP PLUS

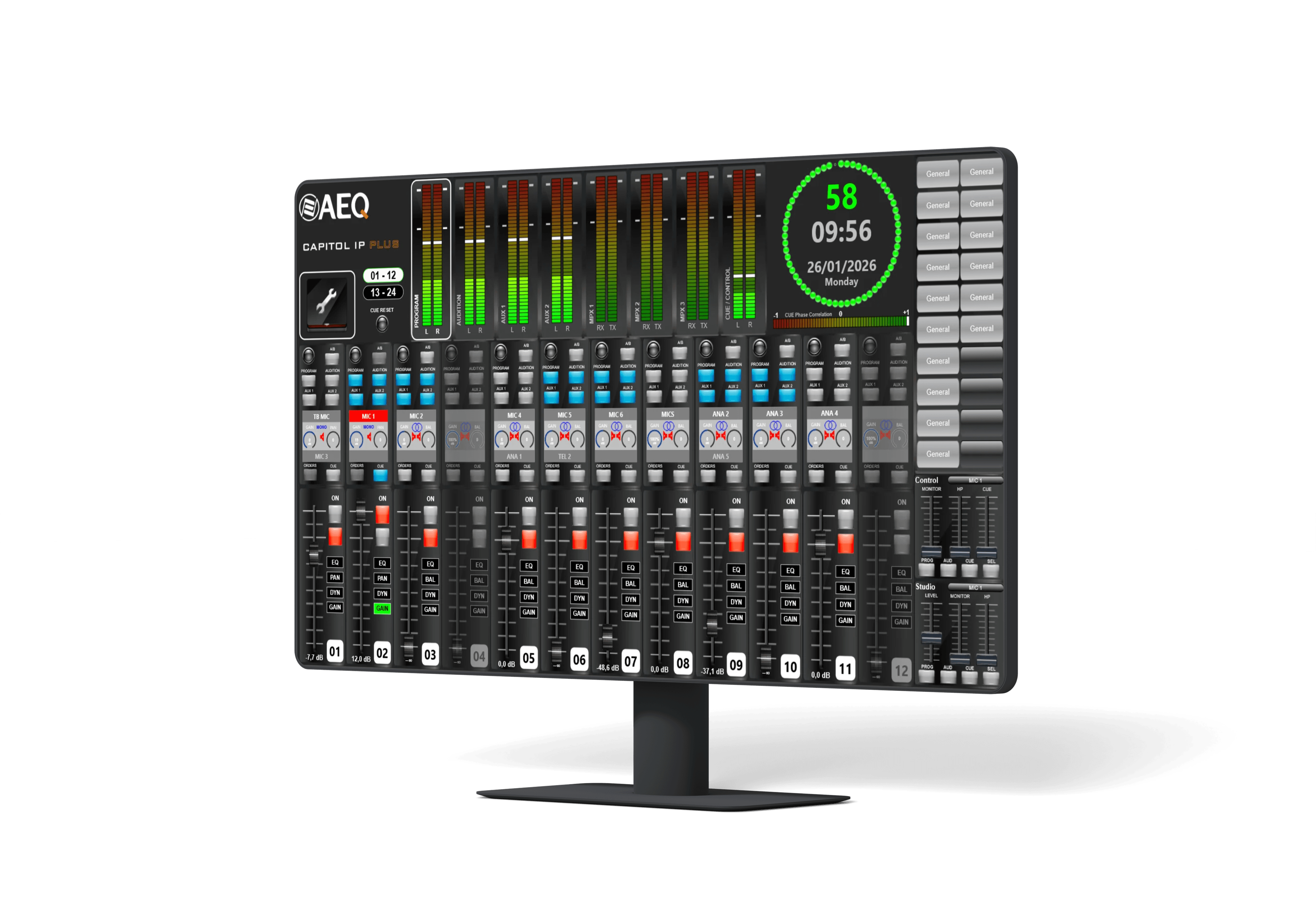

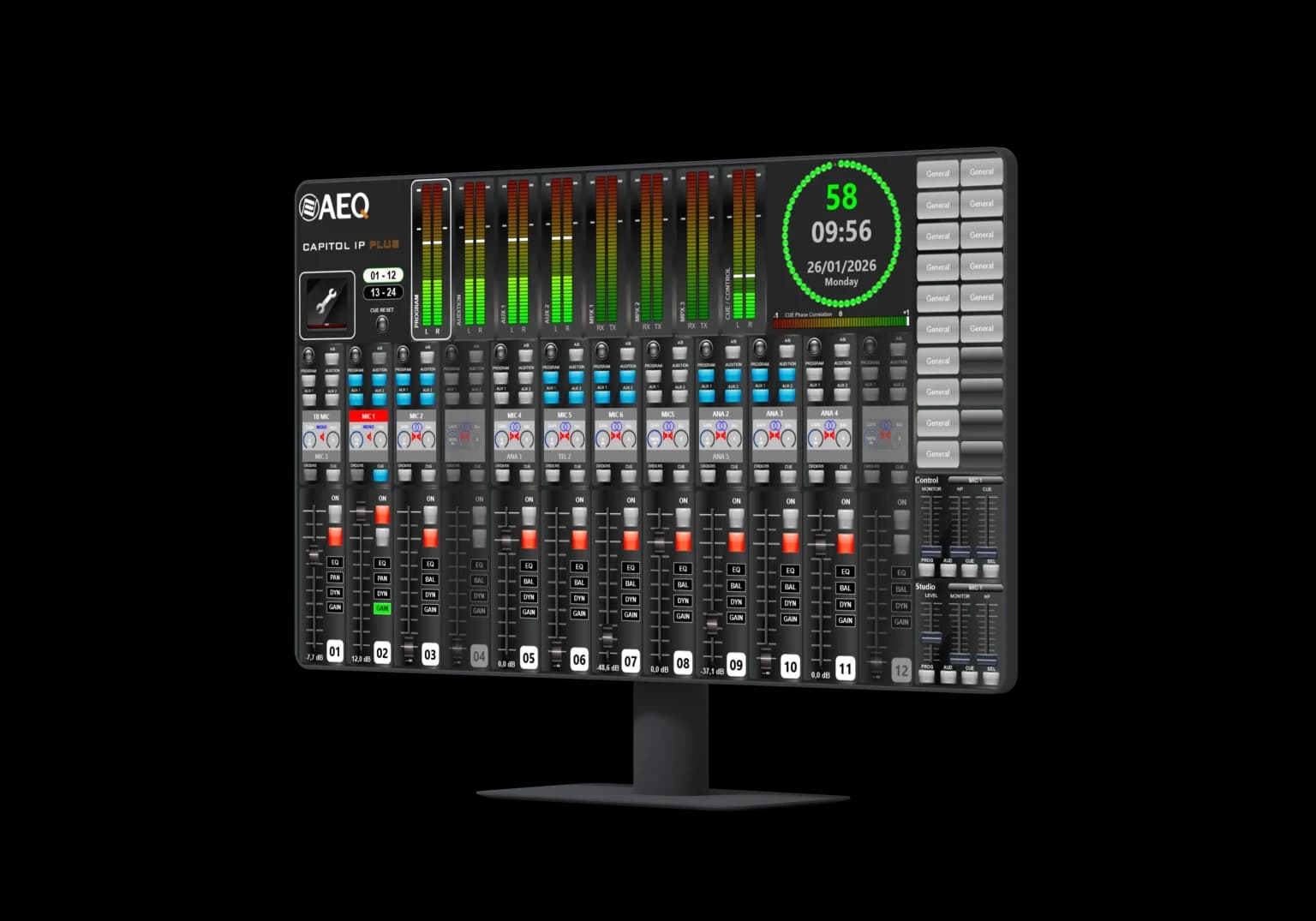

Virtual Capitol IP PLUS

Virtual Capitol

To manage the console remotely, or in parallel with its physical control, simply use the «Virtual Capitol» app. It shows an exact representation of the control surface, including all physical controls available on the real surface as well as most advanced functions: controlling faders and audio channels, modifying equalisations, gains, balance/pan, saving or loading memories, activating special functions from programmable keys, and even managing incoming phone calls.

Technical Details

  • -Independent control and studio monitoring with configurable VU meters for all system signals.
  • -Two CUE monitoring outputs for Pre-Fader listening.
  • -Three built-in amplified headphone outputs: Control, Primary and Secondary.
  • -Two high-precision stereo VU meters.
  • -Test tone generator.
  • -Externally synchronised clock, timer and stopwatch.
  • -Cough mute, ON-AIR signalling for control and studio.
  • -5th microphone.
  • -Fader start, remote PFL, talkback and automatic monitor muting.
  • -Configurable N-1 outputs.
  • -Integrated control of external equipment (AEQ hybrids and audiocodecs) via programmable keys.
  • -Independent Pre-Fader/Post-Fader configuration for all routes.
  • -Analogue stereo outputs for control, studio, CUE and primary studio headphone monitoring.
  • -CUE outputs.
  • -4 mono mic/line inputs with phantom power and electronically balanced microphone inputs.
  • -12 analogue inputs / 8 analogue outputs (configurable as individual stereo pairs).
  • -4 AES/EBU stereo digital inputs and 4 AES/EBU stereo digital outputs configurable as SPDIF.
  • -Sample rate converters for digital inputs.
